• FEH-125 (5-Axis Tilting Swiveling Rotary Table) CNC Rotary Table Pneumatic Brake
  • FEH-125 (5-Axis Tilting Swiveling Rotary Table) CNC Rotary Table Pneumatic Brake
FEH-125

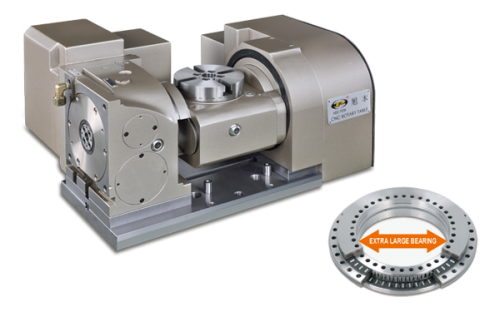

  • Table diameter provides a choice of Ø125mm.
  • Employs high rigidity, extra large radial and axial bearing.

 FEH-125 (5-Axis Tilting Swiveling Rotary Table) CNC Rotary Table Pneumatic Brake

Inquiry
Specifications
MODEL UNIT FEH-125
Table diameter mm Ø125
Center hole diameter mm Ø25H7
Through-hole diameter mm Ø25
90° Vertical height mm 155
0° horizontal height mm 225
T-slot width of table mm 12H7
Guide key width on tilting axis mm Ø14h7
Min.setting angle deg. 0.001
Servo motor model Motor Brand

Tilt axis

 Swiveling axis(Stra.)
FANUC α2i / ß4is α2i / ß4is
Mitsubishi HF-105T HF-KP73
HG-KR73
HF-105S
Positioning accuracy sec. 60 40
Repeatability sec. 8 6
Clamping torque Pneu. 5~7kg/cm² N.m - 80
Hyd. N.m 150
(20-25 kg/cm²)		 -
Teeth ratio - 1:60 1:60

Max. table speed (FANUC a motor)

 rpm 44.4 44.4
Allowable load capacity 0° Horizontal kg 45
0°-90°Vert. kg 30
Allowable cutting force
(Clamped status)		 F N 4500
FxL N.m 250
FxL N.m 260
Allowable torque on worm gear N.m 85
Tilting angle kg/cm² +30~-120
Allowable inertia J=W.D²/8 deg. 0.14
Weight (Motor excluded) kg 105
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
Dimensional Drawings
FEH-125 (5-Axis Tilting Swiveling Rotary Table) CNC Rotary Table Pneumatic Brake
