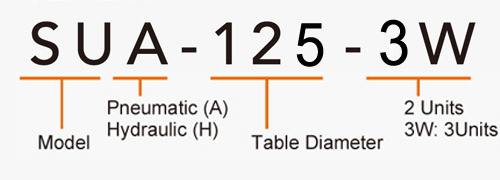

SUA-125-2W/3W
  • Table diameter provides a choice of Ø125mm.
  • Employs high rigidity, extra large radial and axial bearing.
  • Equipped with special labyrinth type multi-piece disk brake that provides multi-surface braking. Big area design effectively increases clamping force. The table structure eliminates table surface floating problem.
  • Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
  • Various sheet metal guards are available to suit various brands of motors. Contact us for detail.

SUA-125-2W (2/3 Units) CNC Rotary Table Pneumatic Brake
SUA-125-3W (2/3 Units) CNC Rotary Table Pneumatic Brake



Inquiry
Specifications
MODEL UNIT SUA(H)-125-2W/3W
Table diameter mm Ø125
Center hole diameter mm Ø35H7
Through-hole diameter mm Ø25
Height of center (Vertical) mm 155
Heightt of table (Horizontal) mm 152
T-slot width of table mm 12H7
Width of guide block mm Ø18h7
Min. increment deg. 0.001
Indexing accuracy sec. 40
Repeatability sec. 4
Clamping torque Air 5~7kg/cm² N.m 100
Hyd. 20~30kg/cm² N.m 150
Servo motor model FANUC - α2i / ß4is
Mitsubishi - HF-75T
Teeth ratio - 1 : 60
Max.table speed(FANUC a motor) rpm 83.3
Allowable load capacity Vertical kg 50
Horizontal kg 110
With tailstock kg 110
Allowable cutting force(Clamped status) F N 10000
FxL N.m 410
FxL N.m 80
Allowable torque of worm gear N.m 85
Allowable inertia J=W.D²/8 kg.m² 0.14
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
Dimensional Drawings
SUA-125-2W/3W (2/3 Units) CNC Rotary Table Pneumatic Brake
