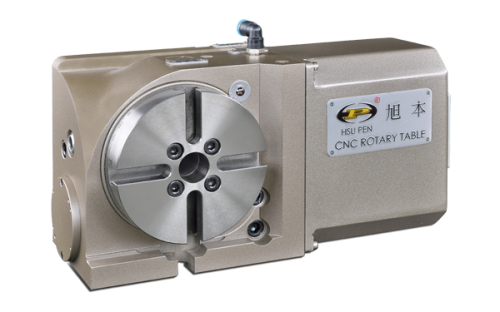

• SUAC-125 (C Series) CNC Rotary Table Pneumatic Brake
SUAC-125
  • Table diameter provides a choice of Ø125mm.
  • Employs high rigidity, extra large radial and axial bearing.
  • Equipped with special labyrinth type multi-piece disk brake that provides multi-surface braking. Big area design effectively increases clamping force. The table structure eliminates table surface floating problem.
  • Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
  • Various sheet metal guards are available to suit various brands of motors. Contact us for detail.

 SUAC-125 (C Series) CNC Rotary Table Pneumatic Brake

Inquiry
Specifications
MODEL UNIT SUAC-125
Table diameter mm Ø125
Center hole diameter mm Ø25H7
Through-hole diameter mm Ø25
Height of center (Vertical) mm 110
Height of table (Horizontal) mm 138
T-slot width of table mm 12H7
Width of guide block mm 14h7
Min. increment deg. 0.001
Indexing accuracy sec. 40
Repeatability sec. 4
Clamping torque Air 5~7kg/cm² N.m 80
Hyd. 20~30kg/cm² N.m -
Servo motor model FANUC - α2i / ß4is
Mitsubishi - HF-75/HF-105S
Teeth ratio - 1 : 48
Max.table speed(FANUC a motor) rpm 83.3
Allowable load capacity Vertical kg 40
Horizontal kg 90
With tailstock kg 100
Allowable cutting force(Clamped status) F N 9000
FxL N.m 400
FxL N.m 80
Allowable torque of worm gear N.m 85
Allowable inertia J=W.D²/8 kg.m² 0.14
Weight (Motor excluded) kg 27
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
Dimensional Drawings
