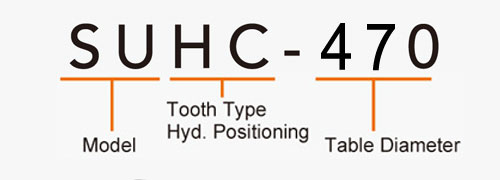

SUHC-470
  • Table diameter provides a choice of Ø470mm, etc.
  • Employs three-piece clutch gear with accuracy reaching ±5 sec. Suitable for heavy cutting.
  • Choice of 4, 6, 8, 12 and 24 indexes.
  • Choice of special indexes 2, 3, 5, 9 .. ..

 SUHC-470 (Horizontal Tooth Type Hydraulic Positioning) Tooth Type Rotary Table

Inquiry
Specifications
MODEL UNIT SUHC-470
Table diameter mm Ø470
Center hole diameter mm Ø90H7
Center hole depth mm 12
Through hole diameter mm 41
Height of table (Horizontal) mm 240
Indexing number (Standard) - 4/6/8/12/24(Standard indexes)
Indexing number (Spec.) - 2/3/5/9(Special indexes)
Indexing accuracy sec. ±5
Repeatability sec. ±1
Clamping method Hyd. pressure kg/cm² 35
Unclamp / clamp time s 0.8/0.1
Time of rotating 90° s 2.7
Clamping torque kgf.m 86
N.m 843
Allowable instant inertia J=W.D²/8 kg-m² 45
Allowable load Horizontal kg 700
Allowable cutting force
(Clamped status)		 F (Hori.) kgf 3970
N 38906
FxL (Hori.) kgf.m 550
N.m 5390
FxH (Hori.) kgf.m 1428
N.m 13994
Weight (Motor excluded) kg 270
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
Dimensional Drawings
