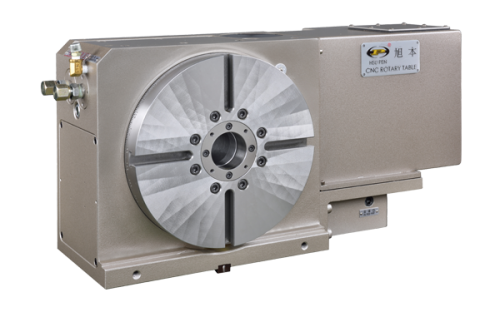

SUHI-255N
  • Table diameter provides a choice of Ø255mm.
  • Choice of indexing accuracy of 1° or 5°.

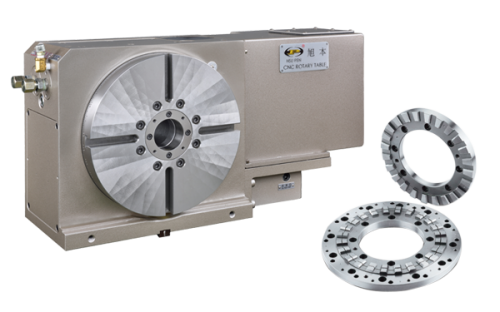

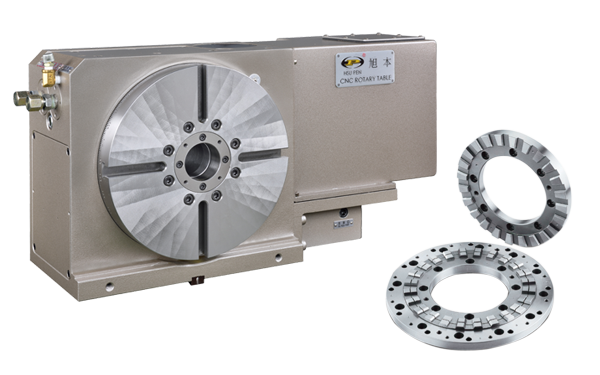

  • Employs three-piece clutch gear with accuracy reaching ±5 sec.
  • Upon request, Japanese made worm/worm gear are available.
  • Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
  • Various sheet metal guards are available to suit various brands of motors. Contact us for detail.

 SUHI-255N (Tooth Type Hydraulic Positioning) Tooth Type Rotary Table

Inquiry
Specifications
MODEL UNIT SUHI-255
Table diameter mm Ø255
Center hole diameter mm Ø50H7
Through-hole diameter mm Ø50
Height of center(Vertical) mm 160
Height of f table (Horizontal) mm 205
T-slot width of table mm 12H7
Width of guide block mm 18h7
Min. increment deg. 1° or 5°
Indexing accuracy sec. ±5
Repeatability sec. ±1
Clamping method Hyd. pressure kg/cm² 35
Clamping torque N.m 1750
Servo motor model FANUC - α4i / ß8is
Mitsubishi - HF-154S
Teeth ratio - 1 : 120
Max.table speed(FANUC a motor) rpm 33.3
Allowable load capacity Vertical kg 125
Horizontal kg 300
With tail stock kg 300
Allowable cutting force(Clamped status) F N 16000
FxL N.m 1750
FxL N.m 3000
Allowable torque of worm gear N.m 250
Allowable inertia J=W.D²/8 kg.m² 3
Weight (Motor excluded) kg 125
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
