SUHI-320N

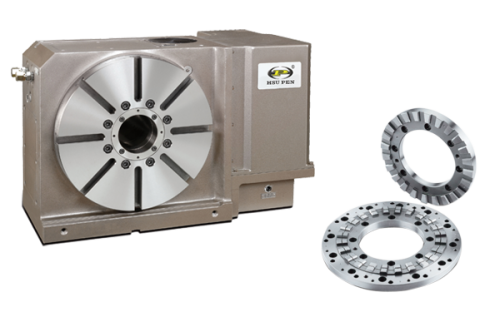

SUHI-320N (Tooth Type Hydraulic Positioning) Tooth Type Rotary Table
SUHI-Tooth Type Hydraulic Positioning Series
SUHC (Vertical) Tooth Type Hydraulic Positioning Series
SUHC (Horizontal) Tooth Type Hydraulic Positioning Series
SUHI-320N
Table diameter provides a choice of Ø320mm.
Choice of indexing accuracy of 1° or 5°.
Employs three-piece clutch gear with accuracy reaching ±5 sec.
Upon request, Japanese made worm/worm gear are available.
Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high preCISIOn.
Various sheet metal guards are available to suit various brands of motors. Contact us for detail.
Other models
SUHI-255N
SUHI-400N
Inquiry
Specifications
MODEL
UNIT
SUHI-320
Table diameter
mm
Ø320
Center hole diameter
mm
Ø80H7
Through-hole diameter
mm
Ø80
Height of center(Vertical)
mm
210
Height of f table (Horizontal)
mm
250
T-slot width of table
mm
14H7
Width of guide block
mm
14h7
Min. increment
deg.
1° or 5°
Indexing accuracy
sec.
±5
Repeatability
sec.
±1
Clamping method
Hyd. pressure
kg/cm²
35
Clamping torque
N.m
2500
Servo motor model
FANUC
-
α12i/ß22is
Mitsubishi
-
HF-204S
Teeth ratio
-
1 : 120
Max.table speed(FANUC a motor)
rpm
25
Allowable load capacity
Vertical
kg
175
Horizontal
kg
350
With tail stock
kg
400
Allowable cutting force(Clamped status)
F
N
20000
FxL
N.m
2500
FxL
N.m
4000
Allowable torque of worm gear
N.m
750
Allowable inertia
J=W.D²/8
kg.m²
4.8
Weight (Motor excluded)
kg
205
*The specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
